fendt | sprayer

rogator

first of its kind. second to none.

The Fendt Rogator is a high‑performance self‑propelled sprayer engineered for precision, efficiency, and operator comfort. The 900 Series is nothing if not versatile. A customizable common chassis can handle a wide variety of terrain, crops, and crop heights with ease. Offerring a standard clearance option or the RG934H and RG937H with the ability to perform high-clearance applications for late season work.

PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

Key Specifications

Models & Configurations
  • Model Range: Fendt Rogator 900 Series including RG932, RG934, RG934H, RG937 and RG937H
  • Application Types: Designed for liquid application, dry spreading, pneumatic delivery, and multi‑product configurations
  • Clearance Options: Standard and high‑clearance models available for late‑season and tall‑crop applications
Power & Drivetrain
  • Engine: AGCO Power 8.4‑liter, 6‑cylinder diesel delivering strong torque and responsive power for demanding application conditions
  • Power Management: Tractor Management System (TMS) automatically optimizes engine speed and power output
  • Drive System: AWD SmartDrive with independent four‑wheel traction and speed control for consistent grip and stability
Application Systems
  • Liquid Capacity: Multiple tank configurations ranging from 900 to 1,580 gallons to match operation size and workload
  • Liquid Delivery: Standard 186 GPM system with optional high‑volume 299 GPM configuration for higher application rates
  • LiquidLogic™: FlowLogic recirculating boom, OptiStop nozzle shut‑off, OptiLoad level sensing, and OptiFlow agitation for consistent application control
Operator Comfort & Control
  • Cab Environment: Pressurized Category 4 filtration system with automatic climate control for operator protection and comfort
  • Controls: Viper 4+ standard with section control, optional VarioTerminal for advanced Fendt SectionControl and VRC
  • Visibility & Ride: Cab suspension, air‑ride seating, and smooth hydrostatic braking for long, productive workdays

Avalable Options & Configurations

  • Boom Options: Steel and aluminum booms available from 90 to 132 feet with stainless‑steel recirculating plumbing
  • Nozzle Control: Multiple spacing configurations with OptiStop and optional OptiPulse for precise rate control
  • Spinner & Pneumatic Systems: Compatible with NL4500/NL5000 MultiApplier, MultiBin, AirMax Precision, and dual‑bin configurations
PRODUCT HIGHLIGHTS

powerful and resiliant

the best in the industry



The AGCO Power 8.4L engine has been designed to maximize the horsepower’s reliability, minimizing components and service needs. This Tier IV Final rated engine uses AGCO’s selective catalytic reduction (SCR) and diesel oxidation catalyst (DOC) emissions technology in combination with a diesel particulate filter (DPF).

PRODUCT HIGHLIGHTS

one platform. full control

boost yeild and profit

PTx FarmENGAGE™ is the next generation of farm operations management software, designed to bring clarity, connectivity, and control to your entire operation. Built to work across mixed fleets and multiple equipment brands, FarmENGAGE lets you manage every aspect of your farm, from the field or the office, using the machinery you already own, regardless of make or model year.

With powerful tools for fleet tracking, job monitoring, and data management, FarmENGAGE helps keep operators productive, equipment visible, and workflows running efficiently. By centralizing information and simplifying day‑to‑day management, it enables smarter decisions and smoother operations across the whole season.

PRODUCT HIGHLIGHTS

control the terrain

boost yeild and profit



Four-corner airbag suspension and patented dual struts allow for 6 inches of vertical travel. The ride for the boom and operator results in greater stability and control, both on the road and in the field.

Every Rogator is capable of doing standard clearance work, while the H models offer high-clearance capabilities and a dual-position chassis perfect for all-season applications with 16 inches of vertical lift.

  • Ability to change from standard-clearance to high-clearance
    application in less than 45 seconds at the push of a button.
  • Track width stays the same (120 to 152 inches) regardless
    of clearance position.
PRODUCT HIGHLIGHTS

spray smarter

precision spraying increasing efficiency

The Fendt Rogator’s LiquidLogic™ system is engineered for precise, consistent application from the first nozzle to the last. With a fully recirculating boom, OptiStop at‑nozzle shutoff, and intelligent agitation control, LiquidLogic keeps product moving evenly through the system, even at startup and shutdown. The result is accurate rates, reduced waste, and confident coverage across every acre, helping operators apply exactly what’s needed, exactly where it’s needed.

PRODUCT HIGHLIGHTS

High‑Capacity Design
That Keeps You Moving

Monitoring performance has never been this easy
Built for productivity at scale, the Fendt Rogator offers industry‑leading tank capacity options, ranging from 900 to 1,580 gallons. Larger tanks, combined with high‑volume pumping capability, mean fewer refill stops and longer run times in the field. Whether covering large acreage or running high‑rate applications, the Rogator’s capacity is designed to maximize uptime and make the most of every spraying window.
PRODUCT HIGHLIGHTS

Effortless Switching Between Liquid and Dry Application

boost yeild and profit
Versatility is at the core of the Fendt Rogator platform, allowing operators to transition smoothly between liquid application and dry spreading configurations. Compatible with spinner systems, multi‑bin setups, and pneumatic delivery options, the Rogator adapts quickly to changing application needs without complex reconfiguration. This flexibility reduces downtime, expands seasonal use, and lets one machine handle multiple tasks throughout the year with confidence.
PRODUCT HIGHLIGHTS

extensive warranty

with FENDT's Gold Star Customer care



  • Three years or 3,000 hours of bumper to bumper warranty, $0 deductible, full-machine coverage.
  • Fendt dealers use only genuine AGCO ®
    parts, so your Fendt is always 100% Fendt.
  • For longer working periods, you can extend the standard Gold Star offering with Gold Star+. All the same benefits but for as long as five years or 5,000 hours.
FENDT ROGATOR 900 SERIES

Detailed Specifications

Models RG932 RG934 RG934H RG937 RG937H
Engine
Engine make AGCO Power 8.4L AGCO Power 8.4L AGCO Power 8.4L AGCO Power 8.4L AGCO Power 8.4L
Number of cylinders 66666
HP @ 2,100 RPM (kW) 315 (235) 339 (253) 339 (253) 365 (272) 365 (272)
Peak HP @ 1,900 RPM (kW) 340 (254) 370 (276) 370 (276) 392 (292) 392 (292)
Torque @ 1,400 RPM 1,106 ft‑lb (1,200 Nm) 1,180 ft‑lb (1,600 Nm) 1,180 ft‑lb (1,600 Nm) 1,180 ft‑lb (1,600 Nm) 1,180 ft‑lb (1,600 Nm)
Drive System
Management TMSTMSTMSTMSTMS
Traction control AWD SmartDrive AWD SmartDrive AWD SmartDrive AWD SmartDrive AWD SmartDrive
Speed control VarioCruise VarioCruise VarioCruise VarioCruise VarioCruise
Systems
Combo ready YesYesYesYesYes
Liquid product tank capacity – U.S. gal. (L) 900 (3,406.9), 1,100 (4,164) 900 (3,406.9), 1,100 (4,164) 900 (3,406.9), 1,100 (4,164), 1,300 (4,921), 1,580 (5,981) 900 (3,406.9), 1,100 (4,164), 1,300 (4,921), 1,580 (5,981) 900 (3,406.9), 1,100 (4,164), 1,300 (4,921), 1,580 (5,981)
Standard‑volume liquid system 186 GPM186 GPM186 GPM186 GPM186 GPM
High‑volume liquid system ○ 299 GPM 299 GPM 299 GPM 299 GPM
LiquidLogic liquid management FlowLogic recirculating boom; OptiStop at‑nozzle shut‑off; OptiLoad level sensor; keypad with display and in‑terminal readout; OptiMotion auto‑scaled agitation; ClearFlow boom cleanout/recovery; optional Fendt OptiPulse; optional Fendt OptiHeight
Booms
Boom offerings 90 / 100 / 120 (27.4 / 30.5 / 36.6) steel boom with stainless steel recirculating plumbing;
132 (40.2) aluminum boom with stainless steel recirculating plumbing
Nozzle spacing 90' – 15" & 20" with OptiStop;
100' – 15" & 20" with OptiStop and 20" with OptiPulse;
120' – 10", 15" & 20" with OptiStop and 15", 19" & 20" with OptiPulse;
132' – 20" with OptiStop
Spinner system – ft³ (m³)
Spinner system ○ NL4500/NL5000 MultiApplier Ready – 253 (7.1) or 330 (9.3);
NL4500/NL5000 MultiApplier Complete – 310 (8.7)*;
NL4500/NL5000 MultiBin – 324 (8.9)*;
NL720 dual‑bin 12' – 303 (8.58)*
Pneumatic system – ft³ (m³)
Pneumatic system ○ AirMax Precision R1 – single bin 235 (6.65); AirMax Precision R2 – twin bin 215 (6.0);
Optional micro bin – 22 (0.6)*;
AirMax Precision R1 – 275 (6.65)*; AirMax Precision R2 – 255 (6.0)*
Speed
Field speed, low clearance – MPH (KPH) 26 (42)
Field speed, high clearance – MPH (KPH) 15 (24)15 (24)
Road speed – MPH (KPH) 33 (53) 33 (53) 33 (53) 40 (64)** 40 (64)
Final Drive
Wheel motor size 80 cc80 cc80 cc110 cc110 cc
Standard gearbox 26.6:1
Hill climb gearbox ○ ○ ○ 31.7:1 ○
Fluid Capacities
Fuel – U.S. gal. (L) 150 (567) 150 (567) 150 (567) 150 (567) 150 (567)
Diesel exhaust fluid – U.S. gal. (L) 17.5 (66.2) 17.5 (66.2) 17.5 (66.2) 17.5 (66.2) 17.5 (66.2)
Hydraulic reservoir – U.S. gal. (L) 36 (136) 36 (136) 36 (136) 36 (136) 36 (136)
Weights
Weights (full fuel) – lbs. (kg.) 32,000 (14,515)
100 ft. steel booms		 32,300 (14,651)
100 ft. steel booms		 32,760 (14,859)
100 ft. steel booms		 34,920 (15,839)
120 ft. steel booms		 35,380 (16,043)
120 ft. steel booms
Brakes
Primary Hydrostatic dynamic braking
Service Hydrostatic plus disc brakes on front wheels
Parking Multiple discs in gearboxes
Cab
Cab suspension Isolator mount with cushioning shock
Radio AM/FM, CD with weather band, Bluetooth and microphone; optional satellite radio
HVAC Automatic temperature control
Filtration Activated carbon filtration system exceeds dust and vapor performance of ASABE S613 and EN15695 (Cat IV).
Cab isolation evaluated down to 0.3 micron particle size. Includes in‑cab pressurization fan.
Standard seat Air‑ride seat suspension (cloth)
Optional seat Heated / vented leather
Controllers
Standard Viper 4+ with 35/36 section control
Optional VarioTerminal with Fendt Section and VRC with 35/36 section control
Tires
Row crop tire offerings VF320/90R50 Goodyear;
VF380/90R46 Michelin;
VF380/90R46 Goodyear;
VF380/90R46 Trelleborg 		VF380/105R50 Goodyear, VF380/105R50 Trelleborg,
VF380/105R50 Alliance
Floatation tire offerings LSW480/70R46 Goodyear VF380/105R50 Goodyear, VF380/105R50 Trelleborg,
VF380/105R50 Alliance
○ Not available
*Only Available on 934/934H when Equipped with 80" diameter tires
**RG937 with Extreme Hill Climb Package—road speed 32 (51)
***Only available on the RG932.
CHOOSE YOUR MODEL

Featured Premium Pre-Owned Equipment

It does not always have to be new
  • $0.00
    2023 HORSCH PRONTO 6AS
    Alliston, ON
    See details
  • $0.00

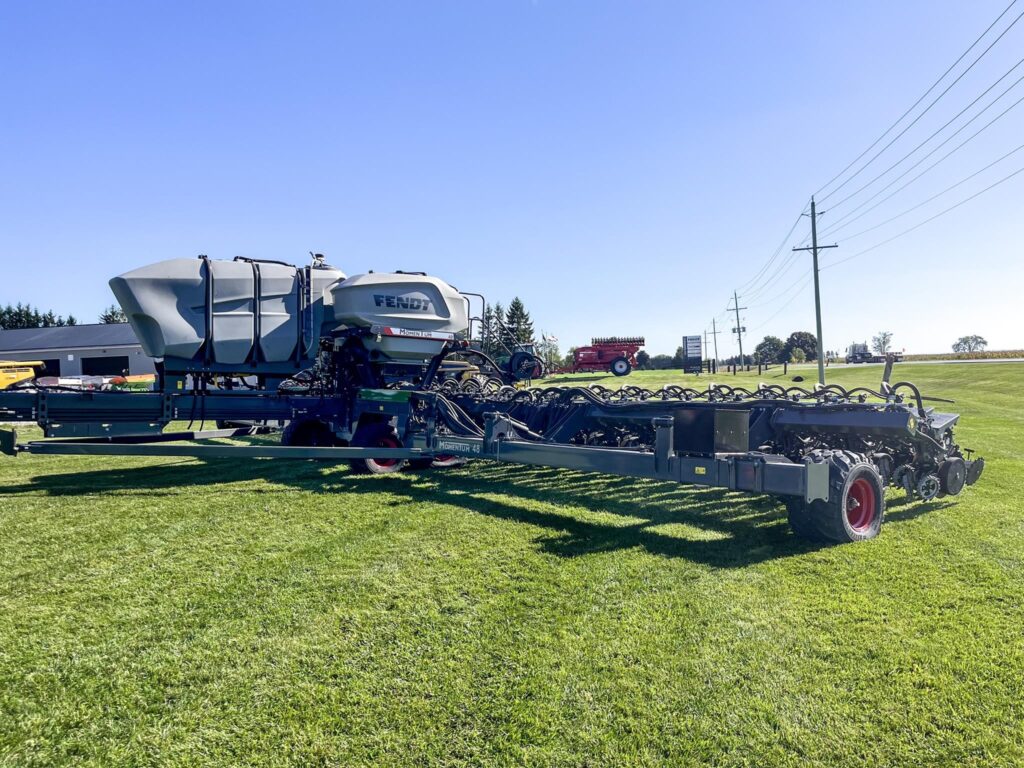

    2023 FENDT FTPM48-15
    Exeter, ON
    See details
  • $0.00

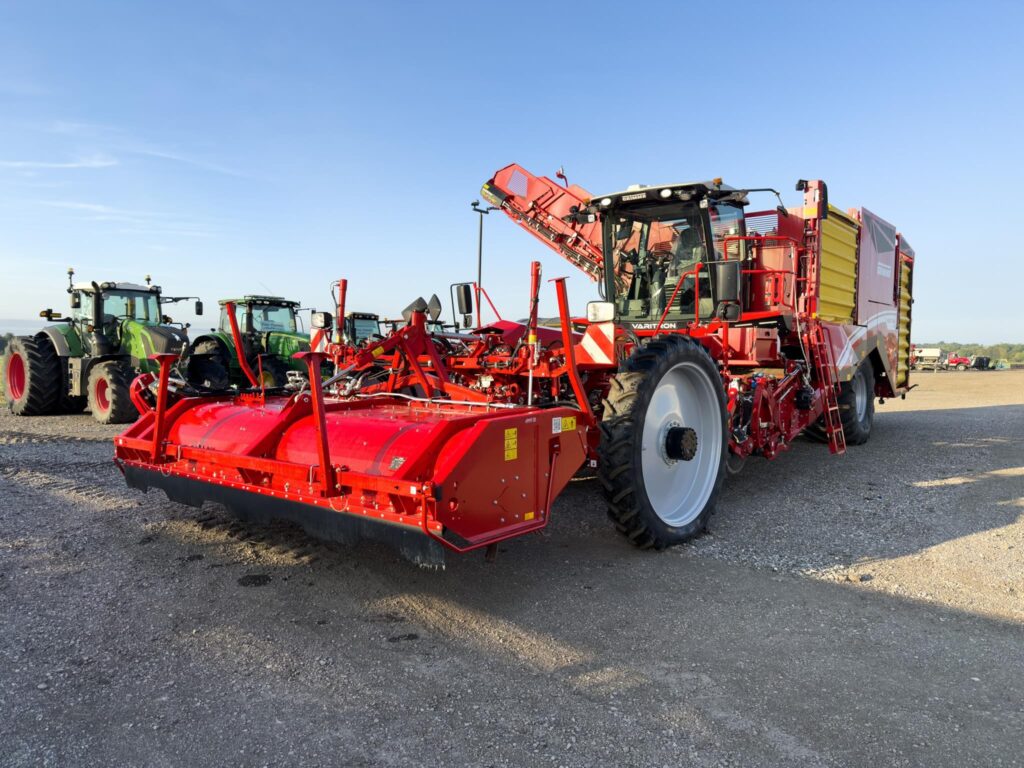

    2024 GRIMME VARITRON 470
    Alliston, ON
    See details
  • $0.00

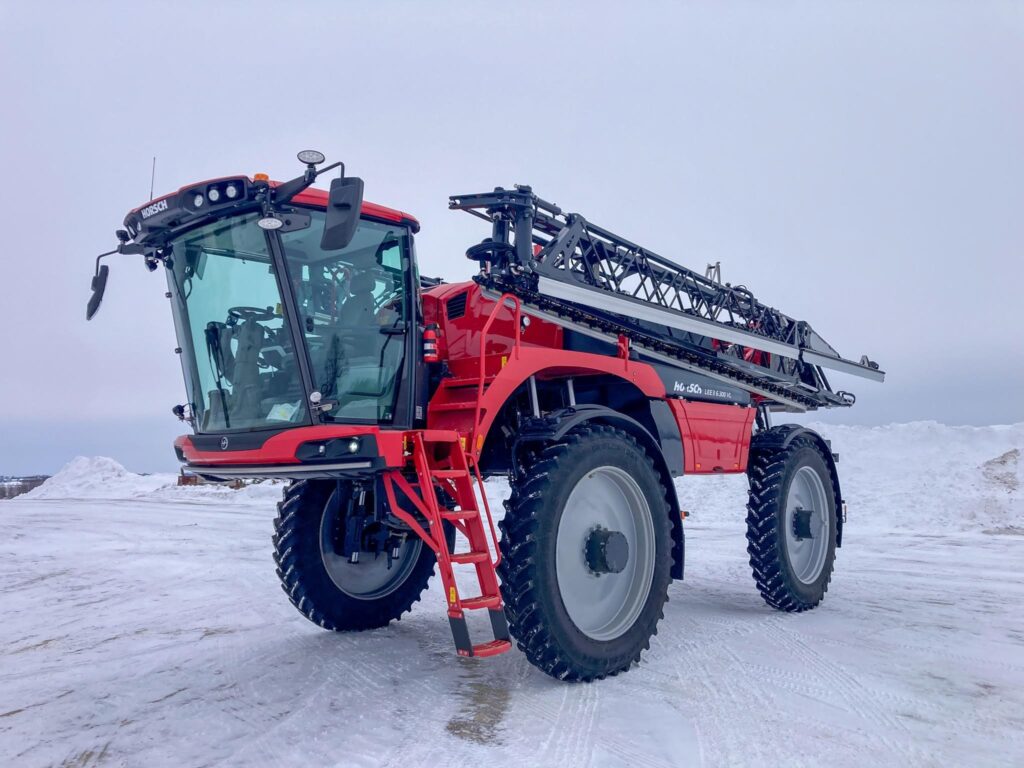

    2024 HORSCH LEEB 6.300 VL
